HS-6403M-T Single Three-Phase Multi-Core Intelligent Electric Energy Meter Terminal Block Temperature Test Device

Models:
Introduction: HS-6403M-T is an electric energy meter terminal block temperature inspection device designed based on the IR46 standard and the requirements of a multi-core modular electric energy meter. The device is equipped with a PC control management software with a humanized design, which provides a complete solution for the automatic verification of the electric energy meter. At the same time, the DLL required for secondary development is provided, which greatly improves the customer's ability to control and manage the device.

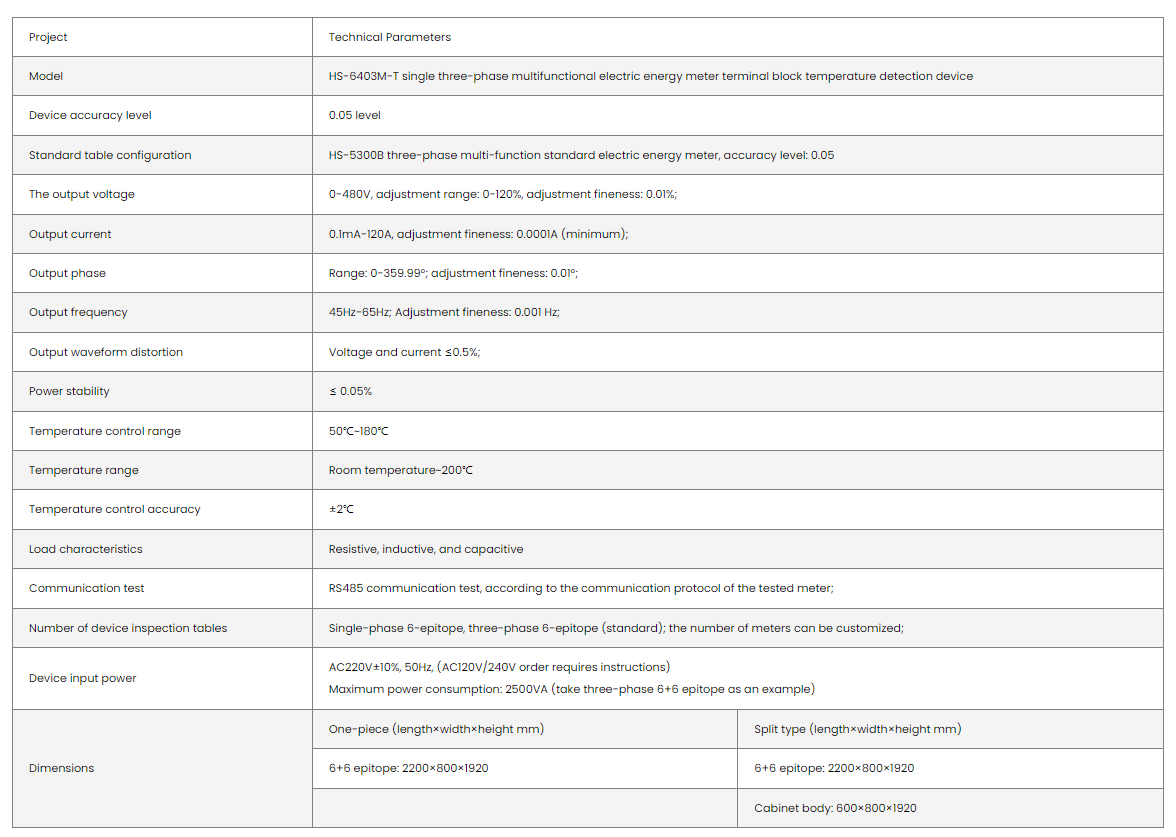

Product Specifications


Main Feature:
1. Equipped with 7-inch high-definition touch screen, flexible and convenient operation
2. Low-power Bluetooth communication system;
3. Dual-channel photoelectric sampling;
4. The terminal block overheating alarm test;
5. Terminal block overheating trip test;
6. Alarm test for sudden temperature changes in the terminal block;
7. The terminal block temperature imbalance alarm test;
