HS-3300 Three-Phase Training Power Supply

Models:
Introduction: HS-3300 three-phase training power supply can be used as an analog power supply for various electric energy meter training devices, which can simulate voltage phase sequence, current phase sequence, reverse polarity of each phase current, voltage loss, current loss, and voltage loss , Voltage unbalance, current unbalance, voltage limit, current overcurrent and other functions.

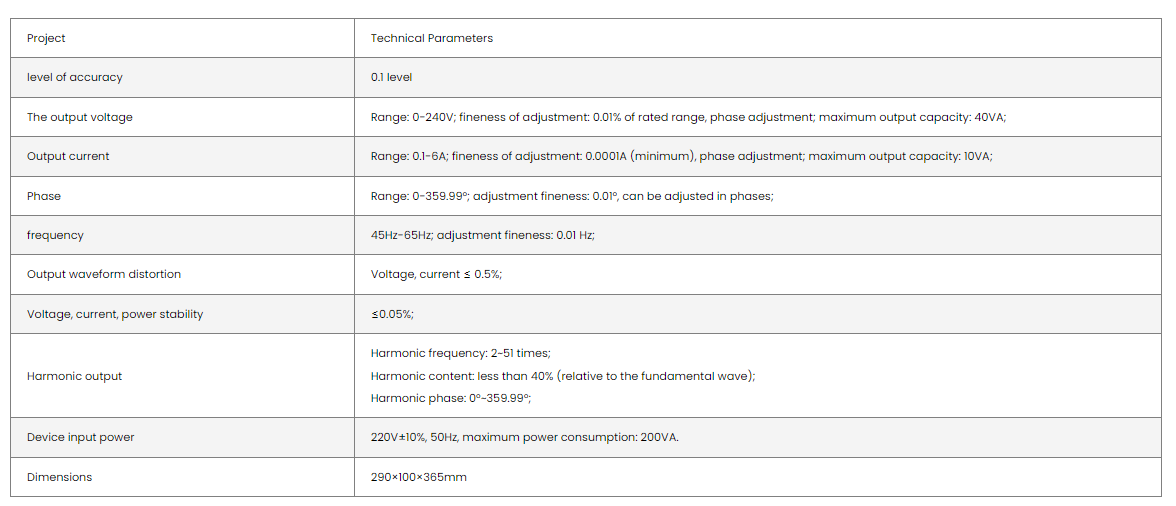

Product Specifications


Main features of the device:
1. Equipped with intelligent system control technology, multi-CPU collaborative processing;
2.2-51 harmonics, the content angle can be set, the total content of harmonics is less than 40%, the angle can be set arbitrarily;
3. Adopt compact design, small size and light weight;
4. Suitable for all kinds of wrong wiring and fault simulation devices;
