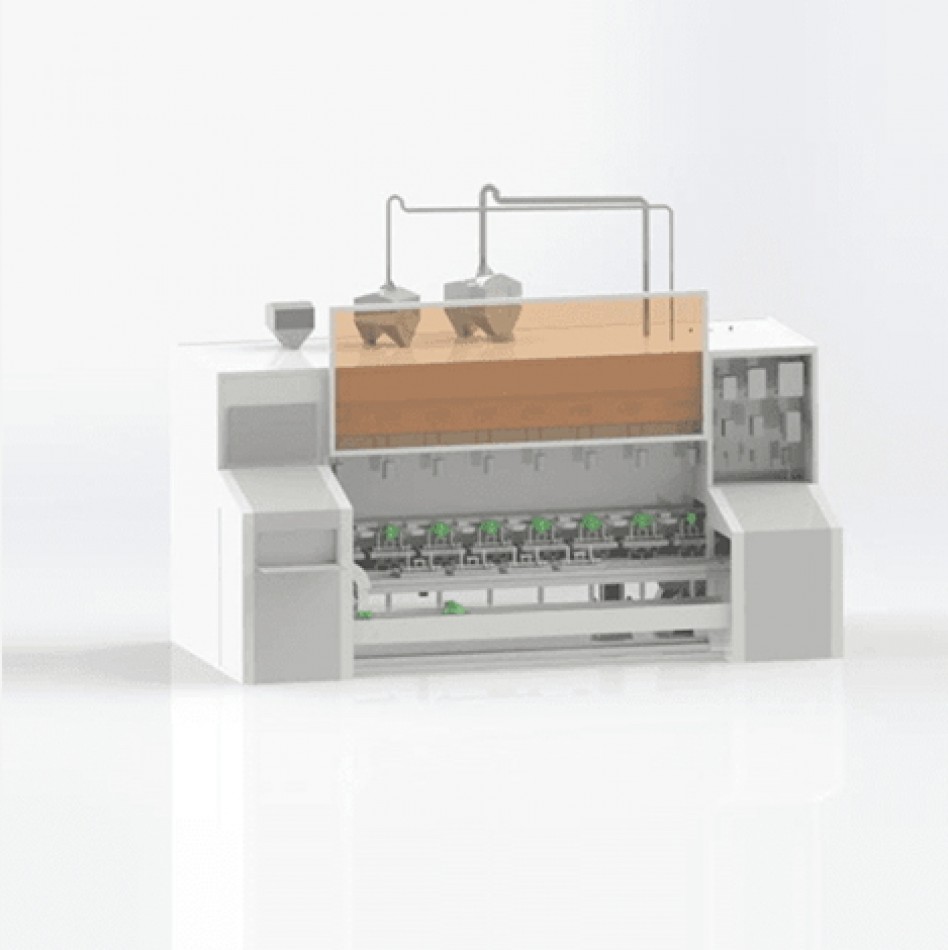

HS-7510 Automatic Water Meter Verification System

Models:
Introduction: The national metrological verification regulation stipulates that the water meter must be checked flow error by four flow point: nominal flow rate, boundary flow rate, minimum flow rate, initial dynamic flow rate and the pressure resistance verification of the water meter.At present the verification/testing of water meter by manually working like clamping,verifying,calculating records and unloading meter, so slowly.

Product Specifications

1.Support DN12,DN20,DN25 and other size water meter,can automatic matching and no need adjust by manual.
2.One key to start,can be tested automatically according to the test project.
3.Can choose the test mothod according the regulation:Start and stop method,commutation method,flow time method and so on.
4.The water representation value supports various collection methods: Mobile phone app camera method, high-speed camera camera pulse method, laser pulse method ,485 communication, M-bus communication, near-infrared communication and so on.
5.Automatic load and unload meter,automatic sorting,empty water,can increase automatic packing system.
6.With Software Operate system which more humanized, intelligent, rich interface information,can support remote upgrade.
7.Data processing: automatically calculation and draw verification conclusions, can save,query, correction, statistics, report printing and other database functions.
